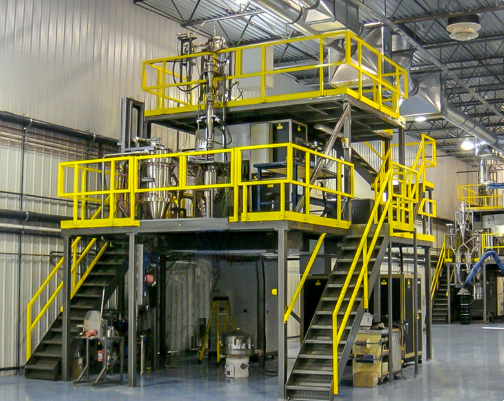

Developed specifically for large-scale spherical powder manufacturing
The TekSphero-200 is designed for cost-effective, high-volume industrial powder production, operating continuously 24/7 to meet the demands of large-scale manufacturing environments.Â
Developed specifically for large-scale spherical powder manufacturing
The TekSphero-200 ensures reliable, high-quality powder production with uninterrupted 24/7 operation.Â
200 kW
5–15 g/h- 30–100 tons/year depending on the material and technical requirementsÂ
7.7 × 6.5 × 6.8 m.
The system is designed according to the strictest standards and includes multiple safety interlocks.
Operation through a touchscreen interface with data recording.
The TekSphero-200 is designed for cost-effective, high-volume industrial powder production, operating continuously 24/7 to meet the demands of large-scale manufacturing environments.Â
Developed specifically for large-scale spherical powder manufacturing
The TekSphero-200 ensures reliable, high-quality powder production with uninterrupted 24/7 operation.Â
200 kW
5–15 g/h- 30–100 tons/year depending on the material and technical requirementsÂ
7.7 × 6.5 × 6.8 m.
The system is designed according to the strictest standards and includes multiple safety interlocks.
Operation through a touchscreen interface with data recording.
| Specifications |
TEKSPHERO 15 R&D SCALE |
TEKSPHERO 40 PILOT |
TEKSPHERO 80 INDUSTRIAL |
TEKSPHERO 200 INDUSTRIAL |
|---|---|---|---|---|
|
Productivity TONNES / YEAR |
1 – 3 |
2 – 25 |
15 – 50 |
30 – 100 |
|
Productivity KG / HOUR |
0.5 – 1.5 |
1.2 – 3.6 |
2 – 7 |
5 – 15 |
|
Dimensions L × W × H (M) |
2.5 × 0.9 × 2.0 |
4.6 × 3.8 × 2.9 |
5.4 × 3.8 × 2.9 |
7.7 × 6.5 × 6.8 |
|
Ideal Application STAGE OF USE |
Lab & development |
Pilot production |
Industrial |
Industrial |
|
|
PARTICLE SIZE |
SPHERICITY |
MELTING POINT |
PROCESS GAS |
|
|
5 – 500 μm |
Up to 100% |
Up to 4000 °C |
Ar, Hâ‚‚, Oâ‚‚, He, Nâ‚‚, Air |
* The TEKSPHERO 350 is also available on request and offers higher productivity.
